Drill Pipe

Application: Used for Mine, water well drilling, well drilling, coal and fore poling
Size:OD: 60.32mm-168.28mm,WT: 6.45-12.7mm,LENGTH: R1, R2, R3
Pipe Standard:API 5DP E75, X95, G105, S135
Upset Style:IU, EU, IEU
Connection:NC26 - NC50, 5 1/2FH, 6 5/8FH
Internal coating:TK34,TC2000, Arnco 100XT, 200XT, 300XT
InquirySend Email To Us

+8615864396235

jane@ruixingmetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

Product Details

Description

Drill pipes are long tubular sections of pipe that make up the majority of the drill string. They are typically a 31-foot-long section of tubular pipe but may be anywhere from 18 to 45 feet in length.

Heavy-weight drill pipe (HWDP) is a tubular pipe that adds weight or acts as a transitional piece in the drill string. As a transitional section of the drill string, it is placed between the drill collar and the standard drill pipe to reduce fatigue failures. In other applications, the HWDP is used as an additional weight to weigh down the drill string.

Heavy-weight drill pipe is a medium-weight drilling pipe, (referred to standards in API SPEC 7-1). It has a bigger wall thickness than a common drilling pipe and is smaller than a drill collar.

Drill collars are a component of the drill string that makes up part of the BHA. They are thicker-walled, heavier, and more rigid than drill pipes and are primarily used to weigh down the drill bit while dampening vibration and impact forces.

Drill Pipe:2-3/8" to 7-5/8" OD, Range 2 and 3

Heavy Weight pipe:2-3/8" to 6-5/8" OD, Range 2 and 3

Drill Collars:2-7/8" to 14"

Grades: E75, X95, G105, S135

Connection threads:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH.

Internal Upset: IU, EU, IEU

Specification&Standard

Size designation	Calculated weight	Tool joint designation	Calculated weight		grade	Wall thickness		Upset ends
in	Calculated weight	Tool joint designation	1b/ft	Kg/m	grade	in	mm	Upset ends
2 3/8	6.65	NC26	6.26	9.32	E.X.G.S	0.28	7.11	EU
2 7/8	10.4	NC31	9.72	14.48	E.X.G.S	0.362	9.19	EU
3 1/2	13.3	NC38	12.31	18.34	E.X.G.S	0.368	9.35	EU
3 1/2	15.5	NC38,NC40	14.63	21.79	E.X.G.S	0.449	11.4	EU
4	14	NC40,NC46	12.93	19.26	E.X.G.S	0.33	8.38	IU,EU
4 1/2	16.6	NC46,NC50	14.98	22.31	E.X.G.S	0.337	8.56	EU,IEU
4 1/2	20	NC46,NC50	18.69	27.84	E.X.G.S	0.43	10.92	EU,IEU
5	19.5	NC50,NC52	17.93	26.71	E.X.G.S	0.362	9.19	IEU
5	25.6	NC50,5 1/2FH	24.03	35.79	E.X.G.S	0.5	12.7	IEU
5 1/2	21.9	5 1/2FH	19.81	29.51	E.X.G.S	0.361	9.17	IEU
5 1/2	24.7	5 1/2FH	22.54	33.57	E.X.G.S	0.415	10.54	IEU
6 5/8	25.2	6 5/8FH	22.19	33	E.X.G.S	0.33	8.387	IEU
6 5/8	27.7	6 5/8FH	24.21	41	E.X.G.S	0.362	9.19	IEU

Dimension Tolerances

		Tolerance
D Drill-pipe-body Outside Diameter	Pipe body	D≤101.60mm，±0.79mm
		D≥114.30mm，+1.0%, -0.5%D
	Drill-pipe-body behind the Meu	D≥60.32~≤88.90mm，+2.38%, -0.79%D
		D>88.90~≤127.00mm，+2.78mm, -0.75%D
		D>127.00~≤168.28mm，+3.18mm,-0.75%D
Wall Thickness		0, -12.5%t

API SPEC 5DP specifies the technical delivery conditions for steel drill-pipes with upset pipe-body ends and weld-on tool joints for use in drilling and production operations in petroleum and natural gas industries for three product specification levels (PSL-1, PSL-2 and PSL-3). PS-1 specifies wall thickness, impact strength, and yield strength requirements specific to the material grade. Specification levels PL-2 / PL-3 have additional mandatory requirements.

Chemical Composition

	steel grade	P (%)	S (%)
	steel grade	≤	≤
Pipe body	E	0.030	0.020
Pipe body	X, G, S	0.020	0.015
Tool Joint		0.020	0.015

Mechanical Properties

Chemical composition requirements
Pipe body	Phosphorus max. %	Sulfur max. %
Pipe body grade E	0.030	0.020
Pipe body grades X, G and S	0.020	0.015
Tool joint	0.020	0.015

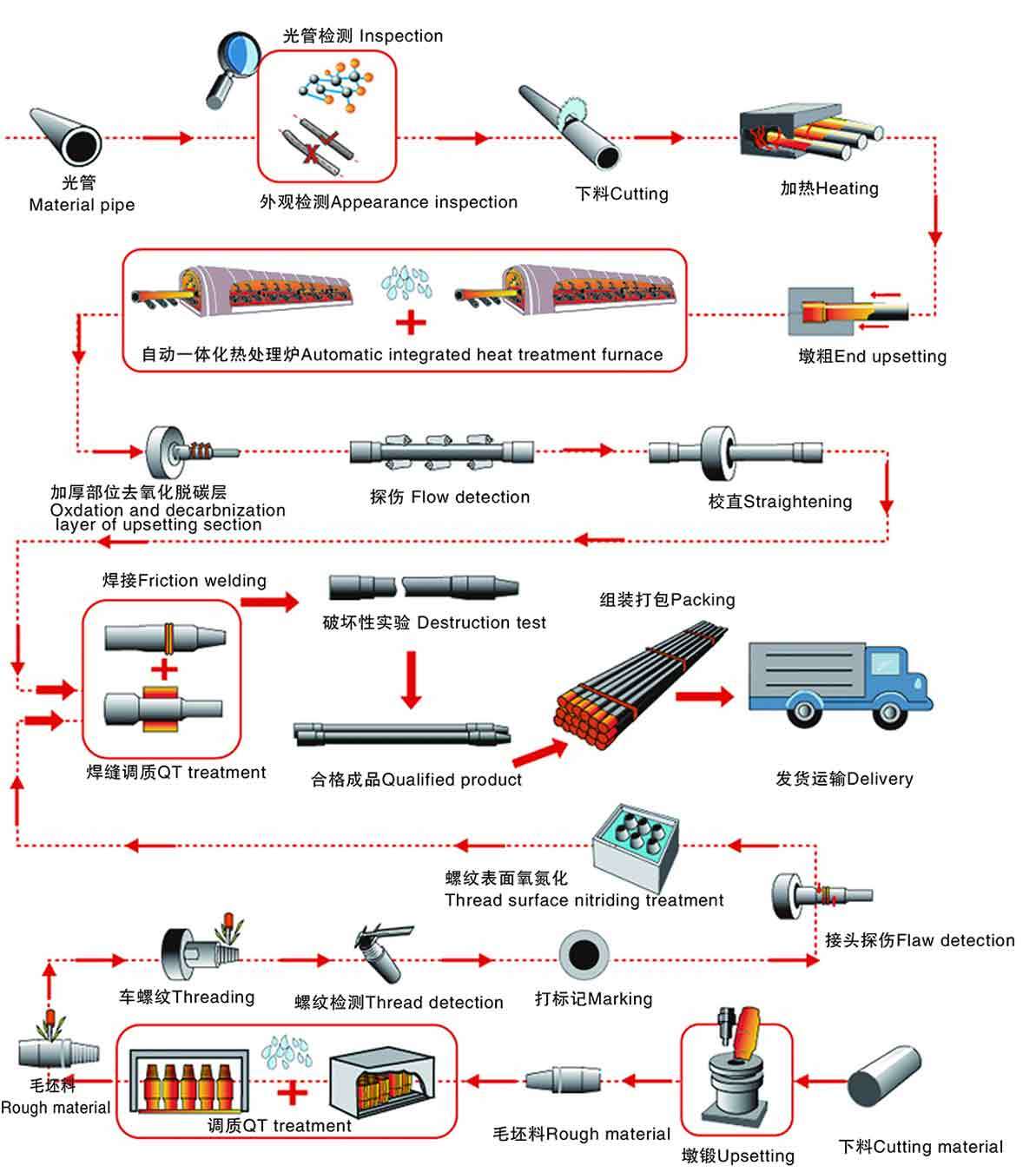

Process
