Pup Joint

Product: Pup Joint, OCTG Pup Point
Application: Pipe Cut into different lengths used to connect 2 joints of tubing or casing
Size: Tubing Coupling : 2-3/8'' - 4-1/2'', Casing Couping : 4-1/2'' - 20', Length: 2, 3, 4, 6, 8, 10, 12 ft
Pipe Standard: API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95
Surface: Coating
Thread: BTC, LTC, STC
Special Service: Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156

+8615864396235

jane@ruixingmetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

Product Details

Description

A pup joint is a Casing, Pipe, or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights, and material grade.

Tubing pup Joint

Tubing pup joints are designed and manufactured as per API 5CT to be used be adjust the height of tubings, and tubing pup joints are made of seamless steel tubings. Material grade of tubing pup joint can be available in J55, K55, N80, L80 or P110, sizes of tubing pup joint range from 2⅜¡± to 4½¡±, thread of pup joint can be 8RD, 10RD or BTC, and end connection types can be NUE and EUE. length of tubing pup joints are often offered in 2ft, 3ft, 4ft, 6ft, 8ft, 10ft, and 12ft, length of pup joints for special purposes can be available as per order. Tubing pup joints are machined with interchangeable Pin & Box thread on two ends or other configurations, one end is equipped with coupling, and another end is protected with a closed-end thread protector. The nominal weight of the tubing pup joint is the same as the tubing. Tubing pup joints are internally and externally hydrostatic tested with tension and compression loads, and torque tested, electromagnetically inspected, pup joint is full-body drift and straightness visual inspected, and phosphated and dye-penetrant inspected. and finally painted by machine to ensure excellenct appearance. Finished tubing pup joints are often packed by steel belts in bundles, and then fixed in steel rack for easy transportation.

Casing pup joint

Casing pup joints are designed and manufactured as per API 5CT to be used be adjust the height of casings, and casing pup joints are made of seamless steel casings. Material grade of casing pup joint can be available in J55, K55, N80, L80 or P110, sizes of casing pup joint range from 4½¡± to 13⅜¡±, thread of pup joint can be 8RD, 10RD or BTC, length of tubing pup joint are often offered in 2ft, 3ft, 4ft, 6ft, 8ft, 10ft and 12ft, length of pup joint for special purpose can be available as per order. Casing pup joints are machined with interchangeable Pin & Box thread on two ends or other configurations, one end is equipped with coupling, and another end is protected with a closed-end thread protector. The nominal weight of the casing pup joint is the same as the casing. Casing pup joints are internally and externally hydrostatic tested with tension and compression loads, torque tested, and electromagnetically inspected, pup joint is full-body drift and straightness visually inspected, and phosphate and dye-penetrant inspected. and finally painted by machine to ensure excellent appearance. Finished casing pup joints are often packed by steel belts in bundles and then fixed in steel racks for easy transportation.

Specification&Standard

SPECIFICATIONS
TUBING PUP JOINT	OD	GRADE	END TYPE	LENGTH(FT)
	2 3/8"	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12
	2 7/8"	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12
	3 1/2"	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12
	4 1/2"	J/K/L/N/P	NUE/EUE	2/3/4/5/6/8/10/12

CASING PUP JOINT	OD	GRADE	END TYPE
	4 1/2"	J/K/L/N/P	LTC/STC/BTC
	5"	J/K/L/N/P	LTC/STC/BTC
	5 1/2"	J/K/L/N/P	LTC/STC/BTC
	6 5/8"	J/K/L/N/P	LTC/STC/BTC
	7"	J/K/L/N/P	LTC/STC/BTC
	7 5/8"	J/K/L/N/P	LTC/STC/BTC
	7 3/4"	J/K/L/N/P	LTC/STC/BTC
	8 5/8"	J/K/L/N/P	LTC/STC/BTC
	9 5/8"	J/K/L/N/P	LTC/STC/BTC
	10 3/4"	J/K/L/N/P	STC/BTC
	11 3/4"	J/K/L/N/P	STC/BTC
	13 3/8"	J/K/L/N/P	STC/BTC

API Spec 5CT – This Standard specifies the technical delivery conditions for steel pipes (casing, tubing and pup joints), coupling stock, coupling material and accessory material and establishes requirements for three Product Specification Levels (PSL-1, PSL-2, PSL-3). The requirements for PSL-1 are the basis of this Standard. The requirements that define different levels of standard technical requirements for PSL-2 and PSL-3, for all Grades except H-40, L-80 9Cr and C110, are contained in Annex H.

Chemical Composition

Standard	Grade	Chemical compositions（％）
API SPEC 5CT	J55	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	V
	K55	0.34～0.39	0.20～0.35	1.25～1.50	≤0.020	≤0.015	≤0.15	≤0.20	≤0.20	/	/
	N80	0.34～0.38	0.20～0.35	1.45～1.70	≤0.020	≤0.015	≤0.15	/	/	/	0.11～0.16
	L80	0.15～0.22	≤1.00	0.25～1.00	≤0.020	≤0.010	12.0～14.0	≤0.20	≤0.20	/	/
	P110	0.26～0.395	0.17～0.37	0.40～0.70	≤0.020	≤0.010	0.80～1.10	≤0.20	≤0.20	0.15～0.25	≤0.08

Mechanical properties

Grade	Type	Total elongation under load (%)	Yield strength (min)	Yield strength (max)	Tensile strength min Mpa	Hardness Max (HRC)	Hardness Max (HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-

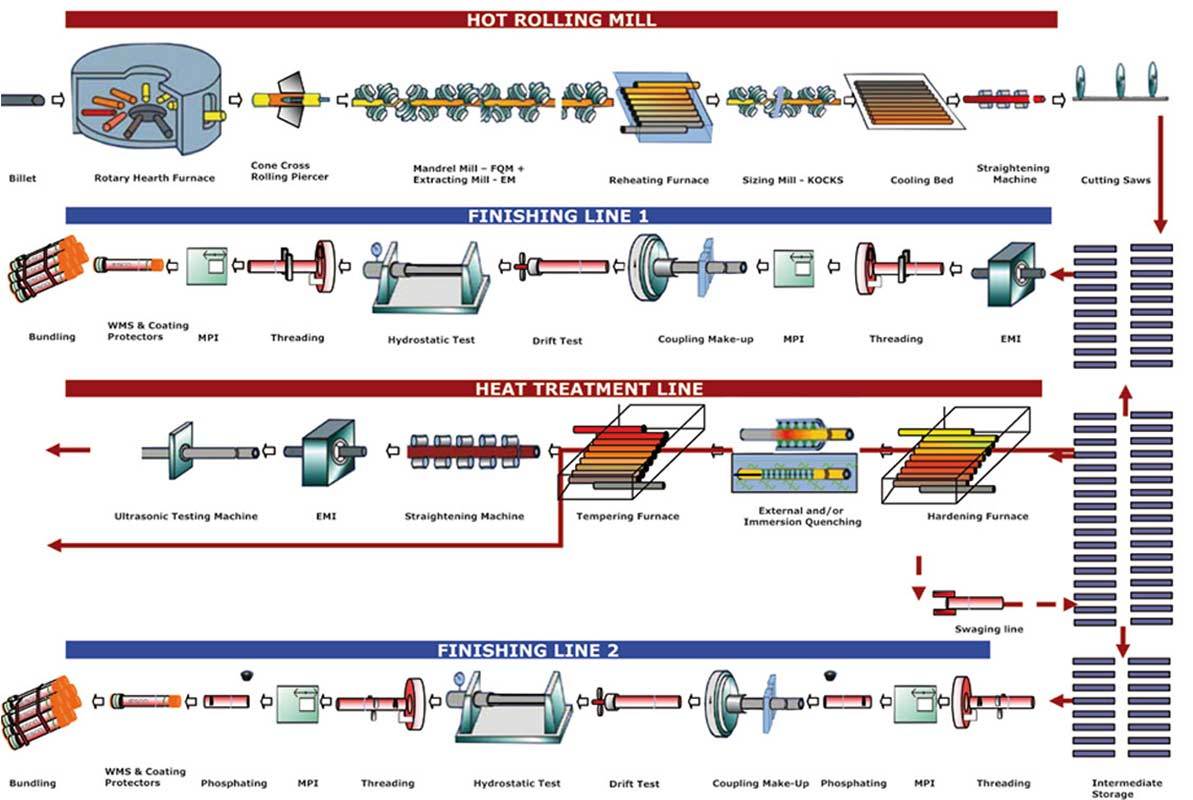

Process
