Slotted Pipe

Application: Used as Walls Structural Retainers and Screen Pipes for Oil, Gas and Water Wells
Specification: OD: 50mm - 500mm;WT: less than 20mm;LENGTH: less than 15m
Slot&Holes Specification: as customer require
Standard & Grade: API , API5CT J55/K55/N80/C75/L80/C90/T95/Q125
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
End: Plain, Beveled, Square Cut, With LTC/STC/BTC Connection
Surface: Anti-corrosion&water Painting
Packing: Protection Caps in Both Ends, Waterproof Paper Wrapped

+8615864396235

jane@ruixingmetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

Product Details

Description

Slot and perforate on the pipe body to be slotted pipes. The types of slots are Perforated, Rectangular slotted, Trapezoid slotted, Bridge slotted, Wire wrapped screen, Mechanical cutting, and Compound slotted pipe.

The slotted pipe is used in oil exploration to prevent sand, decrease oil well repaired, and increase the oil well’s strength, integrality, and stability of keeping off sand.

1. Casing slotted pipe specification:

O.D.: Casing: 4 1/2″-20″ (114.3mm-508mm)

Tubing:1.05″-41/2″(26.7mm-114.3m)

Length:R1:4.88-7.62M,R2:7.621-10.36M,R3:10.36-14.63M

W.T.: 0.205” – 0.875” (5.21mm- 22.22mm)

Product standards: API 5CT, BS EN ISO11960, NFM87-207, JIS G3439, ISO 4270, GOST 632-80

Material: H40, J55, K55, N80-1, N80Q, R95, L80-1, L80-9Cr, L80-13Cr, C90, T95, C110, P110, Q125

2. Thread type:

Casing: STC, LTC, BTC, etc.

Tubing: NU, EU, XL, PH-4, PH-6, LTC, STC, BTC etc.

3. Slotted type

(1)Straight Slots

Cut at a right angle to the liner, this slot type shows the same diameter from the inside to the outside of the wall. Although straight slots are cheaper to produce, they are less effective in sand control compared to keystone slots.

(2)Keystone Slots

Cut at a slight angle, keystone slots, or tapered slots, are larger on the inside than on the outside, making sure that any particle entering the slot can pass through freely without clogging the slot.

Keystone slots are more expensive to than straight slots but lower the risk of production losses due to plugged liner slots.

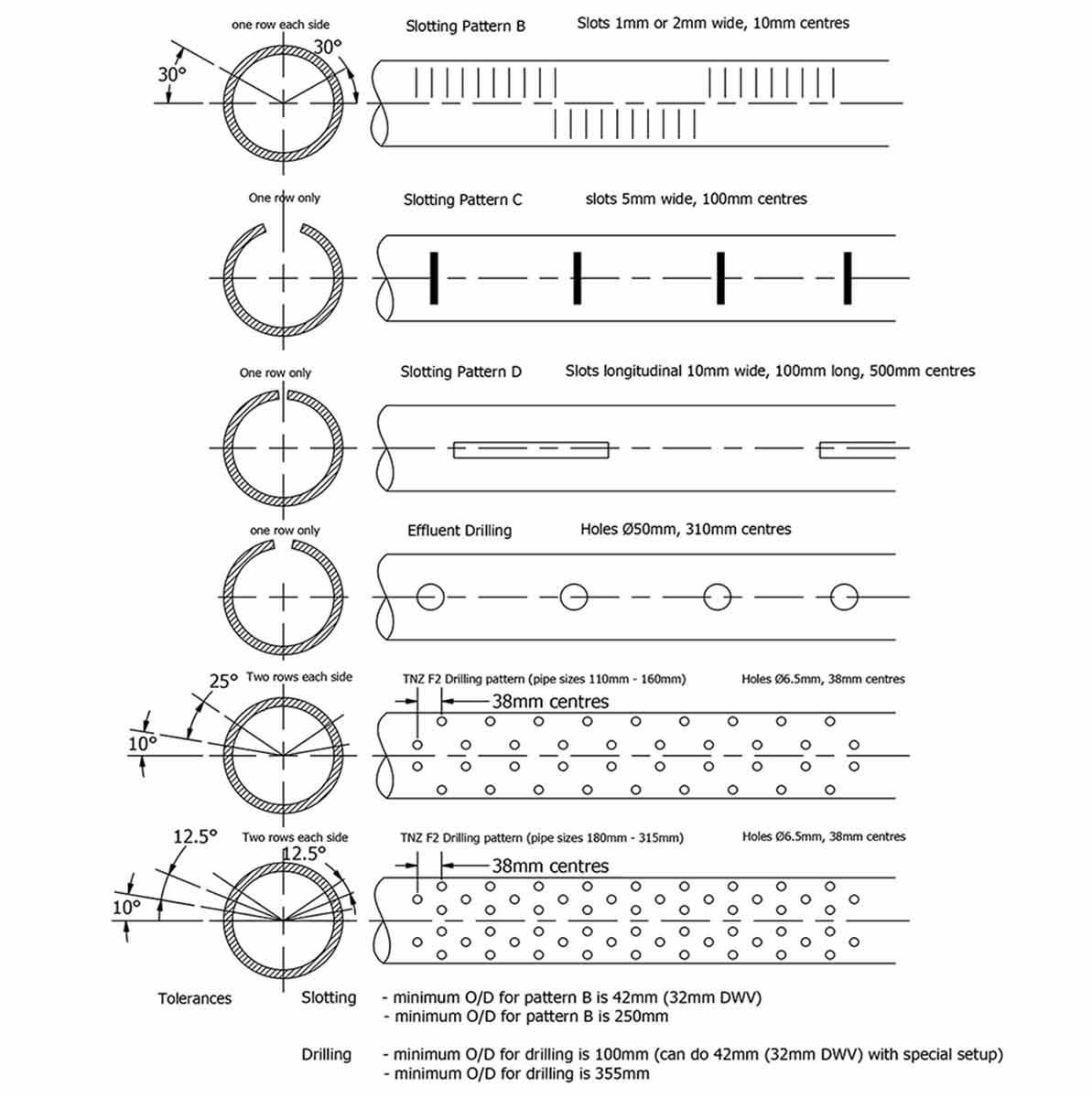

(3)Slot Patterns

Whether you want your slotted pipe with a line, staggered, gang, overlapping, horizontal, or any other pattern, we can cut them all.

Among all slot patterns, the following three are the most common.

(4)Line (Straight) Pattern

In the line pattern, slots are placed evenly in identical bands around the pipe, forming straight lines of slots across the length of the slotted liner.

(5)Single-Slot Staggered Pattern

In the single-slot staggered pattern, bands of evenly spaced slots are placed around the pipe. Slots in different bands are offset (staggered) to each other.

The single-slot staggered pattern preserves the strength of the pipe and provides an even distribution of the slots over the area of the pipe.

(6)Gang Pattern (Multiple Staggered Pattern)

While having the same overall layout as the single-slot staggered pattern, the gang pattern places two slots, cut at close proximity, instead of just one slot at each position.

Slotted pipe with a multiple staggered pattern has been shown to withstand higher torque during installation and provide better resistance to deformation under thermal load compared to the single-slot staggered pattern, making it well suited for application in steam assisted gravity drainage (SAGD) applications.

4. Assurance

API/ISO quality system, SGS, DNV, BV, Moody third party inspection welcomed

Specification&Standard

API Casing			ID mm	Length m	Slot Length mm	Slot No.No./m	Slot width mm	Slot Tolerance	Valid Filter Area cm/m	Max. Strength KN

Spec mm	Thickness mm	Per Weight kg/m


60.32	5	6.84	50.3	3	80	200	0.3	±50	48	512.54
73.02	5.5	9.15	62			240			57.6	688.55
88.9	6.5	13.22	75.9			280			67.2	995.1
101.6	6.5	15.22	88.6			300			72	1151.2
114.3	7	18.47	100.3	10		320			76.8	1400.4
127	7.52	22.13	112			340			81.6	1673.8
139.7	7.72	25.11	124.3			360			86.4	1900.2
139.7	9.17	29.48	121.4			360			86.4	2232.4
168.3	8.94	35.09	150.4			400			96	2672.95
177.8	8.05	33.68	161.7			440			105.6	2559.2
177.8	9.19	38.19	159.4			440			105.6	2940.7

API Spec 5CT – Specification 5CT/ISO 11960,GB/T 19830-2011 Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells

Mechanical Properties:

Group	Grade	Type	Total elongation under load %	Yield Strength M pa		Tensile strength min Mpa	Hardness
Group	Grade	Type	Total elongation under load %	min	max	Tensile strength min Mpa	HRC	HBW
1	2	3	4	5	6	7	8	9
2	J55	-	0.5	379	552	517	-	-
	K55	-	0.5	379	552	655	-	-
	N80	1	0.5	552	758	689	-	-
	N80	Q	0.5	552	758	689	-	-
3	L80	1	0.5	552	655	655	23	241
	L80	9Cr	0.5	552	655	655	23	241
	L80	13Cr	0.5	552	655	655	23	241
	C90		0.5	621	689	689	25.4	255
	C95	-	0.5	655	724	724	-	-
	T95		0.5	655	724	724	25.4	255
	P110	-	0.6	758	862	862	-	-
4	Q125	All	0.65	862	931	931	-	-

Chemical Composition

Standard

Grade

Composition（%）

AIs

API SPEC 5CT

J55K55

0.34～0.39

0.20～
0.35

1.25～1.50

≤0.020

≤0.015

≤0.15

≤0.20

≤0.020

(37Mn5)

N80

0.34～0.38

0.20～
0.35

1.45～1.70

≤0.020

≤0.015

≤0.15

0.11
～0.16

≤0.020

(36 Mn2V)

L80(13Cr)

0.15～0.22

≤1.00

0.25～1.00

≤0.020

≤0.010

12.0～
14.0

≤0.20

≤0.020

P110

0.26～0.35

0.17～
0.37

0.40～0.70

≤0.020

≤0.010

0.80～
1.10

≤0.20

0.15
～0.25

≤0.08

≤0.020

Process
