Stainless Welded Pipe
Pipe Standard:ASTM A312/A1016/A269/A268/A789/A632/A250/A270/A358/A688/A814/A409
EN10216/EN10297/JIS G3448/G3459/G3463
Grades:200 series:201,202.204Cu.
300series:301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S,316,316L,321.
400 series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.
Duplex and Others:2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.
Product Details
Description
Stainless steel welded pipe is corrosion resistant and this type of material is extremely durable in harsh conditions. This type of pipe is popular in industrial applications in the following industries:
Chemical, Food and beverage,Marine,Mining,Oil and gas,Pharmaceutical,Petrochemical,Power generation,Renewable energy.
|
Product Name |
Executive Standard |
Dimension |
Steel Code / Steel Grade |
|
Industrial Pipes |
ASTM A312, A358, A778, JIS G3459 |
OD: 1/4"~40" |
TP304, TP304L, TP316L, SUS304TP |
|
Tubes for Boiler and Heat-Exchanger, General Service Tubing |
ASTM A249, A269, JIS G3463 |
OD: 15.9~139.8mm |
TP304, TP304L, TP316L, SUS304TB |
|
Mechanical and Structural Tubes |
ASTM A554, JIS G3446 |
OD: 7.9~152.4mm |
MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304 |
|
Square Tubes |
ASTM A554 |
OD: 12.7x12.7~150x150mm |
MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD |
|
Rectangular Tubes |
ASTM A554 |
OD: 10x20~100x200mm |
MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD |
|
Sanitary Tubing |
ASTM A270 |
OD: 25.4~165.2mm |
TP304, TP304L, TP316L, SUS304TBS |
|
Large Gauge Pipes for Ordinary Piping |
JIS G3448 |
OD: 15.88~318.5mm |
SUS304TPD |
|
Large Diameter Pipes |
JIS G3468 |
OD: 14"~40" |
SUS304TPY |
Processing for Stainless Steel Welded Pipe
|
Bar & Structural Cutting |
Products cut include Round Bar, Flat bar, Hex bar, Square bar, Tubing and Hollow Bar, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″diameter |
|
Production Cutting |
Stainless can provide production cutting for product diameters up to 4″. |
|
Pipe Threading |
Available thru 2″ in Diameter/All schedules |
|
Tubular Polishing |
Products polished included all tubular products, with OD & ID polishing available, Round Bar, Square Bar, Hex & Flat bar, Angles, Uneven Leg Angles, beams, and other shapes. |
Specification&Standard
|
Nominal Diameter NPS |
Outside Diameter (mm) |
Nominal Wall Thickness (mm) |
||||||||
|
ASME B36.19M |
ASME B36.10M |
|||||||||
|
SCH 5S |
SCH 10S |
SCH 40S |
SCH 80S |
SCH 5 |
SCH 10 |
SCH 20 |
STD |
XS |
||
|
1/4 |
13.72 |
— |
1.65 |
2.24 |
3.02 |
|
1.65 |
— |
2.24 |
3.02 |
|
3/8 |
17.15 |
— |
1.65 |
2.31 |
3.2 |
|
1.65 |
— |
2.31 |
3.2 |
|
1/2 |
21.34 |
1.65 |
2.11 |
2.77 |
3.73 |
1.65 |
2.11 |
— |
2.77 |
3.73 |
|
3/4 |
26.67 |
1.65 |
2.11 |
2.87 |
3.91 |
1.65 |
2.11 |
— |
2.87 |
3.91 |
|
1 |
33.4 |
1.65 |
2.77 |
3.38 |
4.55 |
1.65 |
2.77 |
— |
3.38 |
4.55 |
|
1 1/4 |
42.16 |
1.65 |
2.77 |
3.56 |
4.85 |
1.65 |
2.77 |
— |
3.56 |
4.85 |
|
1 1/2 |
48.26 |
1.65 |
2.77 |
3.68 |
5.08 |
1.65 |
2.77 |
— |
3.68 |
5.08 |
|
2 |
60.33 |
1.65 |
2.77 |
3.91 |
5.54 |
1.65 |
2.77 |
— |
3.91 |
5.54 |
|
2 1/2 |
73.03 |
2.11 |
3.05 |
5.16 |
7.01 |
2.11 |
3.05 |
— |
5.16 |
7.01 |
|
3 |
88.9 |
2.11 |
3.05 |
5.49 |
7.62 |
2.11 |
3.05 |
— |
5.49 |
7.62 |
|
3 1/2 |
101.6 |
2.11 |
3.05 |
5.74 |
8.08 |
2.11 |
3.05 |
— |
5.74 |
8.08 |
|
4 |
114.3 |
2.11 |
3.05 |
6.02 |
8.56 |
2.11 |
3.05 |
— |
6.02 |
8.56 |
|
5 |
141.3 |
2.77 |
3.4 |
6.55 |
9.53 |
2.77 |
3.4 |
— |
6.55 |
9.53 |
|
6 |
168.28 |
2.77 |
3.4 |
7.11 |
10.97 |
2.77 |
3.4 |
— |
7.11 |
10.97 |
|
8 |
219.08 |
2.77 |
3.76 |
8.18 |
12.7 |
2.77 |
3.76 |
6.35 |
8.18 |
12.7 |
|
10 |
273.05 |
3.4 |
4.19 |
9.27 |
12.7 |
3.4 |
4.19 |
6.35 |
9.27 |
12.7 |
|
12 |
323.85 |
3.96 |
4.57 |
9.53 |
12.7 |
3.96 |
4.57 |
6.35 |
9.53 |
12.7 |
|
14 |
355.6 |
3.96 |
4.78 |
9.53 |
12.7 |
3.96 |
6.35 |
7.92 |
9.53 |
12.7 |
|
16 |
406.4 |
4.19 |
4.78 |
9.53 |
12.7 |
4.19 |
6.35 |
7.92 |
9.53 |
12.7 |
|
18 |
457.2 |
4.19 |
4.78 |
9.53 |
12.7 |
4.19 |
6.35 |
7.92 |
9.53 |
12.7 |
|
20 |
508 |
4.78 |
5.54 |
9.53 |
12.7 |
4.78 |
6.35 |
9.53 |
9.53 |
12.7 |
|
22 |
558.8 |
4.78 |
5.54 |
|
|
4.78 |
6.35 |
9.53 |
9.53 |
12.7 |
|
24 |
609.6 |
5.54 |
6.35 |
9.53 |
12.7 |
5.54 |
6.35 |
9.53 |
9.53 |
12.7 |
|
26 |
660.4 |
— |
— |
— |
— |
— |
7.92 |
12.7 |
9.53 |
12.7 |
|
28 |
711.2 |
— |
— |
— |
— |
— |
7.92 |
12.7 |
9.53 |
12.7 |
|
30 |
762 |
6.35 |
7.92 |
— |
6.35 |
— |
7.92 |
12.7 |
9.53 |
12.7 |
|
32 |
812.8 |
Thinkness: 8.63-30mm |
||||||||
Welded Stainless Steel Pipe Tolerances
|
NPS Designator |
Permissible Variations in Outside Diameter |
|
|
Over In. |
Under In. |
|
|
1/8 to 1-1/2, incl |
1/64 (0.015) |
1/32 (0.031) |
|
Over 1-1/2 to 4, incl |
1/32 (0.031) |
1/32 (0.031) |
|
Over 4 to 8, incl |
1/16 (0.062) |
1/32 (0.031) |
|
Over 8 to 18, incl |
3/23 (0.093) |
1/32 (0.031) |
|
ASTM A213 |
Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes (1/8”-5”) |
|
ASTM A312 |
Standard Specification for Seamless and Welded Austenitic Stainless Steel Pipes |
|
ASTM A269 |
Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service |
|
ASTM A268 |
Standard Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service |
|
ASTM A270 |
Standard Specification for Seamless and Welded Austenitic Stainless Steel Sanitary Tubing |
|
ASTM A249 |
Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes |
|
ASTM A376 |
Standard Specification for Seamless Austenitic Steel Pipe for High-Temperature Central-Station Service |
|
ASTM A632 |
Specification for Seamless and Welded Austenitic Stainless Steel Tubing (Small-Diameter) for General Service |
|
ASTM A789 |
Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service |
|
ASTM A1016/A1016M |
Standard Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless Steel Tubes |

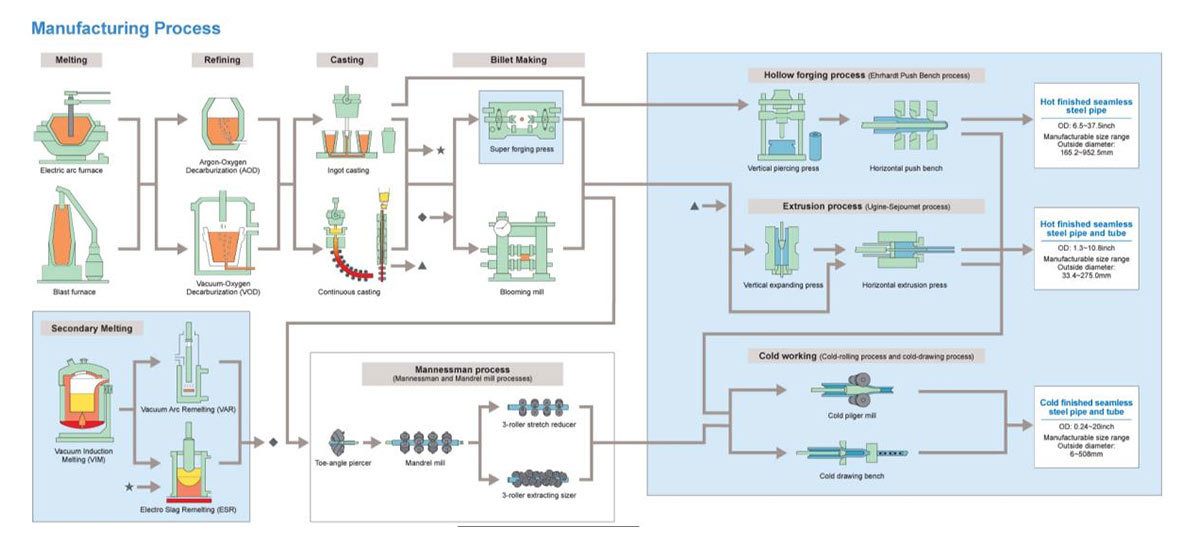

Process

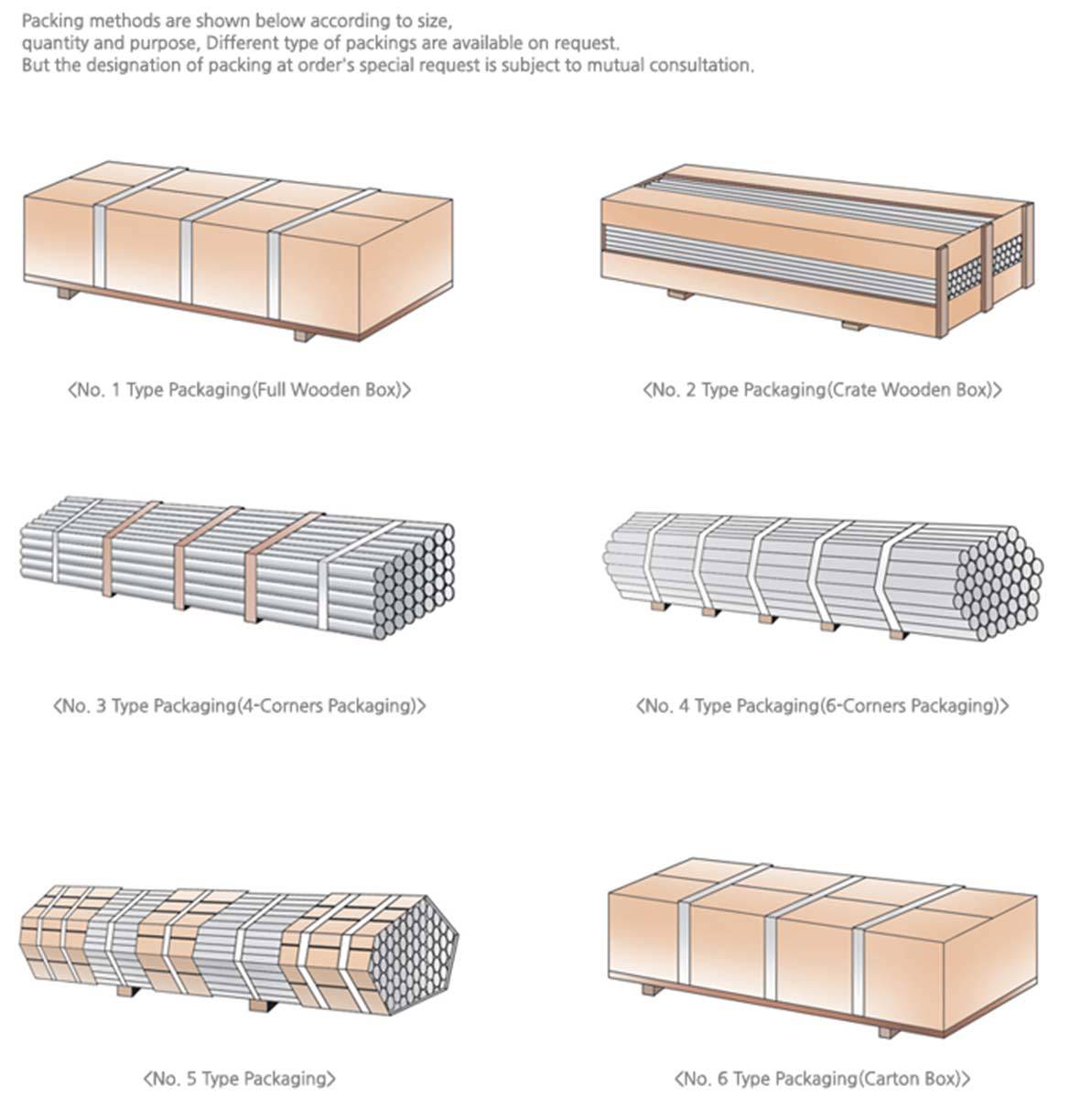

Packing
FACTORY APPEARANCE
STORAGE VIDEO
APPLICATION FIELD
The products distributed by our company are guaranteed by the manufacturer, and have a complete pre-sale, in-sale and after-sales service system. Our company has a strong standing stock of thousands of tons, sufficient supply and complete specifications. It has formed an annual inventory turnover of more than 9,000 tons and more than 800 specifications.
mechanical
boiler plant
power plant
Chemical plant
Oil Pipelines
refrigeration equipment
Water pipes
Bearing
chemical plant
Natural Gas Pipeline
QUALITY INSPECTION
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your Inquiry and we will come back to as soon as possible.
Quality Inspection
Quality Inspection
Quality Inspection
Quality Inspection
Quality Inspection
Quality Inspection
Quality Inspection
Quality Inspection
PACKING AND SHIPPING
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your Inquiry and we will come back to as soon as possible.
Packing and shipping
Packing and shipping
Packing and shipping
Packing and shipping
Packing and shipping
