Liaocheng Development Zone Ruixing Steel Pipe Manufacturing Co., Ltd.

Carbon steel pipes

Seamless Carbon Pipe
A53 Grade A,API5L Grade B,API5L Grade B /X42/ X52/ X60/ X65,PSL-1,PSL-2
Sizes: 1/2”- 48” Sch. 10, STD and XH
Single Random and Double Random Lengths
Seamless Carbon Pipe
ASTM A 53 Grade B,ASTM A 106 Grade B/C,API5L Grade B,API5L Grade B/ X42/ X52/ X60/ X65,ASTM A333 Grade 1/6,ASME,NACE MRO175
Sizes 1/8”- 26” Single Random and Double Random Lengths
Schedules Sch. 20 - Through XXH, with XXXH in 2-1/2” and 3”

+8615864396235

jane@ruixingmetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

Product Details

Description

Carbon steel pipes are divided into hot rolled and cold rolled (pulled) steel pipes.

Hot rolled carbon steel pipe is divided into ordinary steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, geological steel pipe and other steel pipe, etc.

Cold rolled (dialed) carbon steel pipe is divided into ordinary steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, other steel pipe, but also includes carbon thin-walled steel pipe, alloy thin-walled steel pipe

Carbon Steel Seamless Pipes – it contains more carbon and iron in its composition. Depending on the grade, trace amounts of silicon, manganese, and copper are permitted in varying quantities. Therefore, the Carbon Steel Seamless Pipe material is stronger and is extremely resistant to stress. In heavy-duty facilities, these features make the pipes applicable.

Carbon Steel Welded Pipes – are used in high-pressure conditions. In a range of industries, such as the transport of water and waste, the oil and gas industries, high-pressure applications, and chemical manufacturing, carbon steel pipes are commonly used.

Carbon Steel ERW Pipes – have various features like Lightweight, Corrosion resistance, structured appropriately, Precision engineered, intricate detailing, Economical, and more. These ERW pipes are used in Ship Building, Automobile, Boilers & Pressure Vessels, Railways, Oil & Petro Chemicals, Coal & Mining, Transmission Towers, and General & Heavy Engineering.

Carbon Steel LSAW Pipes – has some fine features such as easy installation, seamless finish, Rustproof, and more. As these LSAW pipes are expensive, they are not widely used in lower value non-energy applications such as water pipelines.

Specification&Standard

NOMINAL PIPE SIZE		OD (mm)	NOMINAL WALL THICKNESS
DN	NB(inch)	ASME	SCH10	SCH20	SCH30	STD	SCH40	SCH60	XS	SCH80	SCH100	SCH120	SCH140	SCH160	XXS
15	1/2"	21.3	2.11		2.41	2.77	2.77		3.73	3.73				4.78	7.47
20	3/4"	26.7	2.11		2.41	2.87	2.87		3.91	3.91				5.56	7.82
25	1"	33.4	2.77		2.9	3.38	3.38		4.55	4.55				6.35	9.09
32	1.1/4"	42.2	2.77		2.97	3.56	3.56		4.85	4.85				6.35	9.7
40	1.1/2"	48.3	2.77		3.18	3.68	3.68		5.08	5.08				7.14	10.15
50	2"	60.3	2.77		3.18	3.91	3.91		5.54	5.54				8.74	11.07
65	2.1/2"	73	3.05		4.78	5.16	5.16		7.01	7.01				9.53	14.02
80	3"	88.9	3.05		4.78	5.49	5.49		7.62	7.62				11.13	15.25
90	3.1/2"	101.6	3.05		4.78	5.74	5.74		8.08	8.08
100	4"	114.3	3.05		4.78	6.02	6.02		8.56	8.56		11.13		13.49	17.12
125	5"	141.3	3.4			6.55	6.55		9.53	9.53		12.7		15.88	19.05
150	6"	168.3	3.4			7.11	7.11		10.97	10.97		14.27		18.26	21.95
200	8"	219.1	3.76	6.35	7.04	8.18	8.18	10.31	12.7	12.7	15.09	18.26	20.62	23.01	22.23
250	10"	273	4.19	6.35	7.8	9.27	9.27	12.7	12.7	15.09	18.26	21.44	25.4	28.58	25.4
300	12"	323.8	4.57	6.35	8.38	9.53	10.31	14.27	12.7	17.48	21.44	25.4	28.58	33.32	25.4
350	14"	355.6	6.35	7.92	9.53	9.53	11.13	15.09	12.7	19.05	23.83	27.79	31.75	35.71
400	16"	406.4	6.35	7.92	9.53	9.53	12.7	16.66	12.7	21.44	26.19	30.96	36.53	40.19
450	18"	457.2	6.35	7.92	11.13	9.53	14.27	19.05	12.7	23.83	39.36	34.93	39.67	45.24
500	20"	508	6.35	9.53	12.7	9.53	15.09	20.62	12.7	26.19	32.54	38.1	44.45	50.01
550	22"	558.8	6.35	9.53	12.7	9.53		22.23	12.7	28.58	34.93	41.28	47.63	53.98
600	24"	609.6	6.35	9.53	14.27	9.53	17.48	24.61	12.7	30.96	38.89	46.02	52.37	59.54
650	26"	660.4	7.92	12.7		9.53			12.7
700	28"	711.2	7.92	12.7	15.88	9.53			12.7
750	30"	762	7.92	12.7	15.88	9.53			12.7
800	32"	812.8	7.92	12.7	15.88	9.53	17.48		12.7
850	34"	863.6	7.92	12.7	15.88	9.53	17.48		12.7
900	36"	914.4	7.92	12.7	15.88	9.53	19.05		12.7

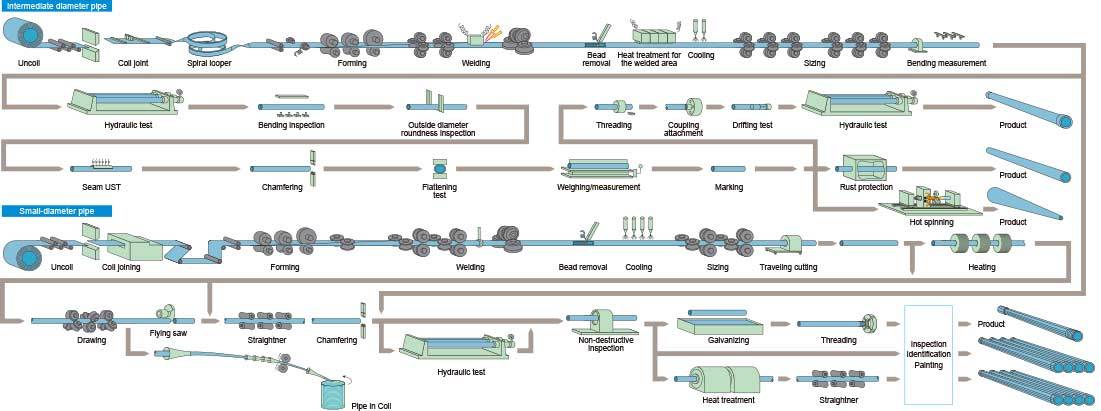

Process

Packing

Bundled package

On bundle of steel tube shall be the same in batch number, steel grade and specification.the rest of tubing less than one bundle should be tied into small bundles.

The weight of each bundle should be less than 50kg.The max weight cannot exceed 80kg of the bundle If there are special requirements.

When the length of the steel tube is greater than or equal to 6m, with at least 8 strapping bands for each bundle, divided into 3 groups and 3-2-3.

When the length of the steel tube is less than 6m, and each bundle is tied at least 5 knots and divided into 3 groups, which are 2-1-2.

When the length of the tube is greater than or equal to 3m, and each bundle is tied with at least 3 bands, divided into 3 groups, 1-1-1 showed below

Wooden box package

The wooden box is suitable for cold rolling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.

When the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.

When the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.

APPLICATION FIELD

The products distributed by our company are guaranteed by the manufacturer, and have a complete pre-sale, in-sale and after-sales service system. Our company has a strong standing stock of thousands of tons, sufficient supply and complete specifications. It has formed an annual inventory turnover of more than 9,000 tons and more than 800 specifications.

mechanical

boiler plant

power plant

Chemical plant

Oil Pipelines

refrigeration equipment

Water pipes

Bearing

chemical plant

Natural Gas Pipeline

QUALITY INSPECTION

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your Inquiry and we will come back to as soon as possible.
