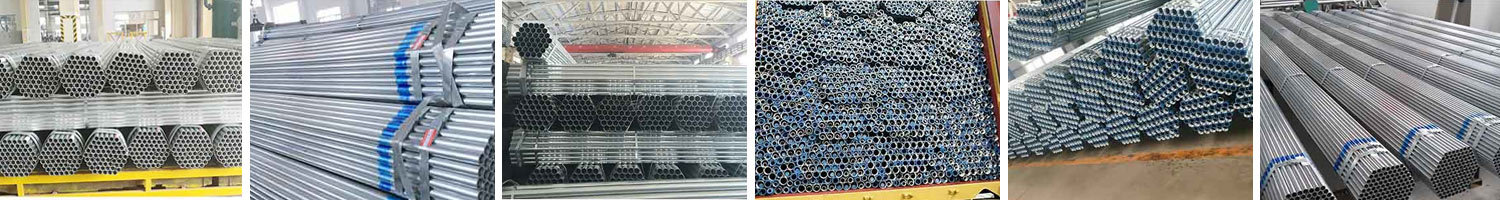

Galvanized Steel Pipe

Size:Outside diameter:
Round pipe: 17mm-273mm
Square pipe:15mm x 15mm - 400mm x 400mm
Rectangular pipe: 10mm x 20mm -200mm x 400mm
Wall thickness:
Round pipe: 0.6mm-12mm
Square pipe:0.6mm-20mm
Rectangular pipe: 0.6mm-20mm
Length:2m-5.8m/6m/12m ( We can adjust length according to your request)
Standard:GB/T 3091 Q195/Q215/Q235/Q345, BS 1387, EN 39, EN 1139 S235JR/S275JR, ASTM A53 GR. A/B/C, JIS G3444 STK 400/STK 500
Pipe type:Seamless & Welded Steel Pipe (Round/Square/Rectangular)
End:Square Cut/Threaded, Burr Removed
Zinc Coating: 120~500 g/m2 （30um~70um）
Packing:Steel Strips bundled, Plastic Caps plugged, Waterproof Paper wrapped etc.

+8615864396235

jane@ruixingmetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

Product Details

Description

Galvanized pipes have a wide range of uses. In addition to oil and other low-pressure fluid pipelines, it is also used as oil well pipes in the petroleum industry, especially in offshore oil fields, oil heaters in chemical coking equipment, coal distillation, and oil washing converter pipes, bridges, etc. Pipe pile, mining tunnel support frame with pipe, etc. Developed countries in the world started to develop new pipes and continuously banned galvanized pipes.

Thickness	1-200mm；or as required	Length:	2000-16000mm，or as required
Dimensions	16-1020mm；(1/2inch~40inch)Dimensions	Technique	Hot Rolled Or Cold Rolle
Zinc Coating	pre galvanized steel pipe: 60-150g/m2 hot dipped galvanized steel pipe:200-460g/m2	Surface treatment	Cold galvanizing，Hot dip galvanized
Certification:	CE, ISO, SGS，BV，Mill Certificate	Standard:	ASTM，JIS，GB，DIN，EN
price terms	FOB,CRF,CIF,EXW, CPT	Payment Terms	T/T, L/C at sight,West Union
Grade	Q195—Grade B, SS330, SPC, S185
	Q215—Grade C,CS Type B, SS330, SPHC，
	Q235---Grade D, SS400, S235JR, S235JO, S235J2，
	Q345---SS500, ST52，S355JR
Delivery Detail	Standard has Stock; Normal About 3-5days; Custom-made 15-20days；According to order's quantity.
Packing	standard export packing (inside:water proof paper,outside:fumigated wooden box) Hexagon Shape Bundle, Covered With Tarpaulin, Containers Or In Bulk

Specification&Standard

hot-dip/cold galvanized steel pipe specification

regulation	grid	OD mm	Wall thickness mm	Minimum wall	Welded pipe ( 6 m fixed length)		Galvanized pipe ( 6 m fixed length)
Nominal inner diameter	inch	OD mm		Thick mm	Meter weight kg	Root weight kg	Meter weight kg	Root weight kg
DN15	1/2	21.3	2.8	2.45	1.28	7.68	1.357	8.14
DN20	3/4	26.9	2.8	2.45	1.66	9.96	1.76	10.56
DN25	1	33.7	3.2	2.8	2.41	14.46	2.554	15.32
DN32	1.25	42.4	3.5	3.06	3.36	20.16	3.56	21.36
DN40	1.5	48.3	3.5	3.06	3.87	23.22	4.1	24.6
DN50	2	60.3	3.8	3.325	5.29	31.74	5.607	33.64
DN65	2.5	76.1	4	3.5	7.11	42.66	7.536	45.21
DN80	3	88.9	4		8.38	50.28	8.88	53.28
DN100	4	114.3	4		10.88	65.28	11.53	69.18
DN125	5	140	4.5		15.04	90.24	15.942	98.65
DN150	6	168.3	4.5		18.18	109.08	19.27	115.62
DN200	8	219.1	6 (welded pipe)		31.53	189.18
DN200	8	219.1	6.5 hot-dip galvanizing				36.12	216.72

GB / T 3091-2001 hot-dip galvanized pipe wall thickness deviation

name Weigh	Chinese standard				Enterprise standard				Contrast conclusion
	Low pressure fluid conveying welded steel pipe				Welded steel pipe
	GB/T3091-2001				Q/YF01-2002
1	Steel pipe outer diameter				Steel pipe outer diameter, outer diameter allowable deviation				Better than Chinese standards
	Outer diameter D/mm	Tube outer diameter deviation mm		Tube outer diameter Deviation mm	Outer diameter D	8″	± 0.60mm
	D< 48.3	± 0.5mm				5″-6″	± 0.50mm
	48.3<D < 168.3	± 1.0%				4″	± 0.40mm
	168.3<D < 508	± 0.75%		+2.4 -0.8		3″-“	± 0.30mm
	D>508	± 1.0%		+3.0 -0.8		2″ or less	± 0.20mm
	Wall thickness deviation	± 12.5%			Wall thickness S	1.8 5.75mm	5%
2	Usual length		Allowable deviation		length	Usual length		Allowable deviation	Better than Chinese standards
	4M-12M		+20 -0			2 inches or less		5-0
	Double length: 5-10mn ® should be left for each double in the usual length Margin		+20 -0			2.5 inches – 4 inches		5-0
						5 inches or more		15-0
						Special length		20-0

Standard: ASTM A53, BS1387-85, GB/T3091-08, DIN2440, JIS-G3444, EN10240, EN10255

Grade: Q195, Q215, Q235, Q345, S235JR, S275JR, STK400, STK500

API SPEC 5L — Specification for Line Pipe

ASTM A53/A53M — Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

ASTM A500 — Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes

BS 1387 — Specification for screwed and socketed steel tubes and tubulars and for plain end steel tubes suitable for welding or for screwing to BS 21 pipe threads

BS 1139 — Metal scaffolding. Specification for prefabricated mobile access and working towers

EN 39 — Loose steel tubes for tube and coupler scaffolds

EN 10255 — Non-alloy steel tubes suitable for welding and threading

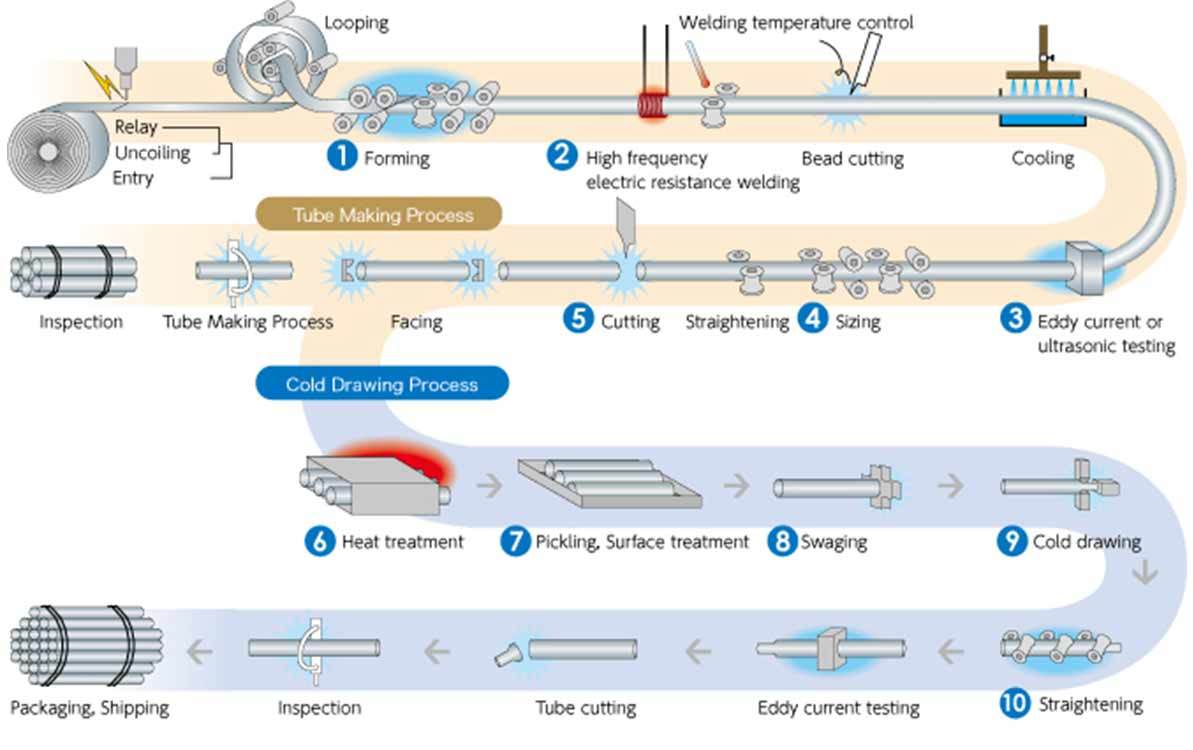

Process

Welded pipe inspection - pickling - washing - coating solvent - aligning - drying - hot galvanizing - external blowing - internal blowing - water cooling - intermediate inspection - passivation - drying - typing - packaging - final inspection

Packing

FACTORY APPEARANCE

Ruixing Steel Pipe was established in 2000. The company is located in Liaocheng, a well-known water city in Jiangbei, with convenient transportation. The company has tens of thousands of square meters of factory buildings, strong capital, and sufficient supply. trust.
Company products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled material, seamless pipe, welded pipe, square pipe, torque pipe, round steel, angle steel, channel steel, I-beam, hexagon Steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel.

CLIENT FEEDBACK

The company's products are not only well received by domestic customers, but also exported to more than 50 countries such as the European Union, the United States, Australia, Southeast Asia, and the Middle East, and have established long-term and stable cooperative relations with them. Ruixing Steel Pipe welcomes new and old customers at home and abroad to visit and negotiate for win-win cooperation!

STORAGE VIDEO

APPLICATION FIELD

The products distributed by our company are guaranteed by the manufacturer, and have a complete pre-sale, in-sale and after-sales service system. Our company has a strong standing stock of thousands of tons, sufficient supply and complete specifications. It has formed an annual inventory turnover of more than 9,000 tons and more than 800 specifications.

mechanical

boiler plant

power plant

Chemical plant

Oil Pipelines

refrigeration equipment

Water pipes

Bearing

chemical plant

Natural Gas Pipeline

QUALITY INSPECTION

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your Inquiry and we will come back to as soon as possible.

Quality Inspection

PACKING AND SHIPPING

Packing and shipping

Galvanized Steel Pipe
